Valve Ancillary Equipment

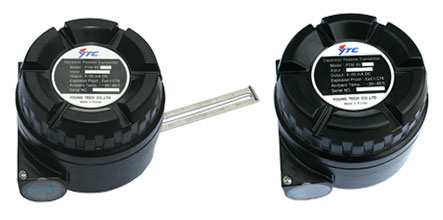

PTM-6VL, 6VR Electronic Position Transmitter

Electronic Position Transmitter PTM-6V senses mechanical position change of stem being on the valve or similar device and converses to current signal of DC 4~20mA outputs. It is flameproof type.

- Wiring is convenient due to 2 wire type.
- It has high resolution and reliability.
- The controlling range of Zero and Span is large, so adjustment is convenient.
- It is possible to change RA/DA with changing position of dip-switch without replacement of any parts.

PTM-6VL, 6VR Electronic Position Transmitter

Specifications

Item.Type
PTM-6VL
PTM-6VR
Item.Type
PTM-6VL, PTM-6VR
Input Type
2 Wire
Protection
IP67
Input Signal
0~30°
0~90°
Ambient Temp
-20°C~70°C(-4~158°F)
Output Signal
4~20mA DC
Linearity
±1% F.S.
Impedance
0~600 Ohm
Hysteresis
±0.2% F.S.
Supply Voltage
15~30V DC
Sensitivity
±0.2% F.S.
Noise Range
50mV p.p
Material
Aluminum Casting
Conduit
PF1/2(G1/2)
Weight
1.2kg(2.7lb)
Explosion Proof
Ex d IIC T6
