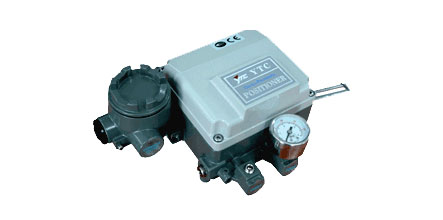

YT-1000L Electro-Pneumatic Positioner

The Electro-Pneumatic Positioner YT-1000L is used for operation of pneumatic rotary valve actuators by means of electrical controller or control systems with an analog output signal of DC 4 to 20mA or split ranges.

Features

  • There is no resonance at 5~200Hz.
  • The change of RA/DA Acting is convenient, it is able to apply to single or double acting actuator. It is possible to prevent the hunting with orifice to the small size actuator.
  • It is economical due to less air consumption.
  • It is able to control the 1/2 split range with simple operation without replacement of parts.

Specifications

Item.Type
Single
Double
Item.Type
Single
Double
Input Signal
4-20mA DC
Ambient Temp
-20°C~70°C(Standard)
Impedance
250±15 Ohm
Linearity
±1% F.S.
±2% F.S.
Supply Pressure
1.4~7kgf/cm2

(20~100psi)
Hysteresis
±1% F.S.
Stroke
0~90°
0~60°
Sensitivity
±0.2% F.S.
±0.5% F.S.
Air Connection
PT (NPT) 1/4
Repeatability
±0.5% F.S.
Gauge Connection
PT (NPT) 1/8
Air Consumption
3LPM (Sup=1.4kgf/cm2,20psi)
Conduit
PF 1/2 (G1/2)
Flow Capacity
80LPM (Sup=1.4kgf/cm2,20psi)
Explosion Proof
Ex dm IIB T6

Ex dm IIC T6

Ex ia IIB T6
Material
Aluminum Diecasting
Protection
IP66
Weight
2.8kg(6.2lb)
