Valve Ancillary Equipment

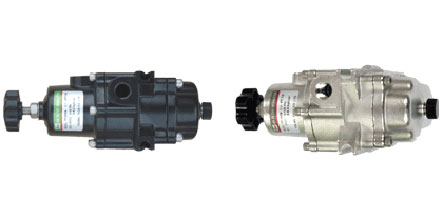

YT-200, 250 Air Filter Regulator

Air filter regulator YT-200,250 reduces the supply pressure of plant's main air line suitably and supplies valve positioner or control device.

- YT-200 maintains the stable outlet pressure regardless of the fluctuation of inputting pressure or flow rate.

- It is easy to install and maintain due to light weight and small size.

- To filter minuteness particle is available with 5 micron filter.

- There is relief function which discharges to atmosphere if the outlet pressure is higher than setting pressure.

YT-200, 250 Air Filter Regulator

Specifications

Item.Type
YT-200
YT-250
Max.Output Pressure
A
B
C
4.2kgf/cm2(57psi)
8.4kgf/cm2(120psi)
2.1kgf/cm2
Max.Supply Pressure
15kgf/cm2(231psi)
15kgf/cm2(231psi)
Air Connection
PT(NPT)1/4
PT(NPT)1/4
Gauge Connection
PT(NPT)1/4
PT(NPT)1/4
Ambient Temp
-15~70°C(5~158°F)
-20~70°C(-4~158°F)
Min.Filtering Size
5micron
5micron
Material
Aluminum Diecasting
Stainless Steel (STS/SUB 316S31)
Weight
0.6kg(1.7lb)
1.3kg(2.9lb)
