Valve Ancillary Equipment

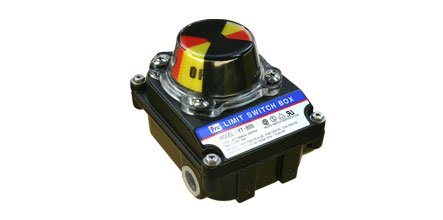

YT-800 Visual Position Indicator

Features

1. Visual Position Indicator

2. "Quick-Set" Cam
Limit Switch adjustment cams are splined and spring loaded, the Switch cam position can be quickly adjust without tools (closed-up, open-down).

3. Multipoint Terminal Strip
Terminal strip number with 8 contacts is standard for micro switches. There are connected solenoid valve service.

4. Dual Wire Potting
Dual 1/2" conduit entries.

5. Captive Cover Bolts
These are designed to be captive by the cover, when it removed.

6. Easy Mounting Bracket
Any actuator for rotary motion can be easily mounted in ISO5211'

YT-800 Visual Position Indicator

Specifications

Item Type
Mechanical Switch
Proximity Switch
Voltage
Max.16A 125,250VAC
0.6A 125VDC, 0.3VAC
1/2HP 125,250VAC
12~24VDC
Current consumption
-
Max 20mA
Residual voltage
-
Max. 1.5V
Control ouput
-
200mA
Explosion proof
-
-
Protection
IP67
Ambient Temp
-20~70(Standard)
Material
Aluminum Diecasting
Weight
0.68Kg(1.5lb)
