Valve Ancillary Equipment

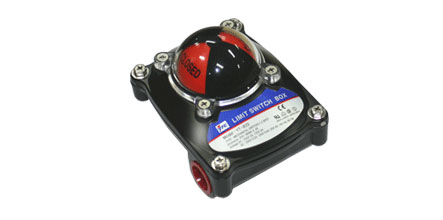

YT-820 Visual Position Indicator

Features

- Solid and compact design
Aluminium die-casting housing and powder coating

- Bolts on visual position indicator

- Quick-set cam
Spring loaded splined cam No need adjust again after intial setting Easy setting Without tool

- Dual cable entries
2x1/2NPT(Standard), M20,PG13.5,PF1/2"(Option)

- Captive cover bolts
No worry to loose bolts while cover open

- Easy mounting bracket
NAMUR standard stainless steel shaft and bracket.

YT-820 Visual Position Indicator

Specifications

Item Type
Standard
Option
Enclosure
Weather proof IP67
IP68
Ambient temperature
-20°C~80°C

Conduit entries
2 x NPT1/2"
PF1/2", PT1/2", M20, PG13.5
Terminal Strips
8 points (0.08~2.5mm2)

Position Indicator
Closed : red, open : yellow
Closed : red, open : green
Switches
Mechanical switch x 2
Proximity sensor x 2

External coating
Polyester powder coating
red, green, blue, yellow, silver colour
Shaft
Standard shaft(17mm)
Long shaft
