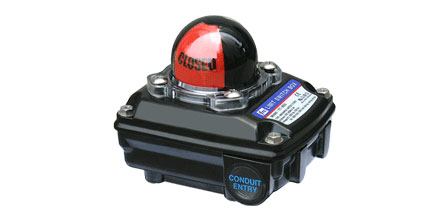

YT-850 Visual Position Indicator

Features

1. Visual Position Indicator

2. "Quick-Set" Cam
Limit Switch adjustment cams are splined and spring loaded, the Switch cam position can be quickly adjust without tools (closed-up, open-down)

3. Multipoint Terminal Strip
Terminal strip number with 8 contacts is standard for micro switches. There are connected solenoid valve service.

4. Dual Wire Potting
YT-800 : Dual 1/2" conduit entries
ALS-20 : Dual 3/4" conduit entries

5. Captive Cover Bolts
These are designed to be captive by the cover, when it is removed.

6. Easy Mounting Bracket
Any actuator for rotary motion can be easily mounted in ISO5211.

YT-850 Visual Position Indicator

Specifications

Item Type
Standard
Option
Enclosure
Weather proof IP67
IP68
Ambient temperature
-20°C~80°C
Conduit entries
2 x NPT1/2"
PF1/2", PT1/2", M20, PG13.5
Terminal Strips
8 points (0.08~2.5mm2)
Position Indicator
Closed : red, open : yellow
Closed : red, open : green
Switches
Mechanical switch x 2
Proximity sensor x 2
External coating
Polyester powder coating
red, green, blue, yellow, silver colour
Shaft
Standard shaft(17mm)
Long shaft
Weight
880g
