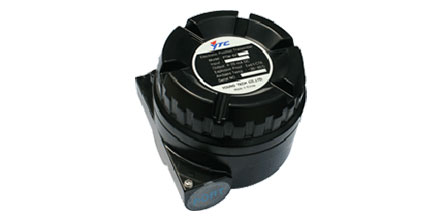

PTM-6VL, 6VR Electronic Position Transmitter
Electronic Position Transmitter PTM-6VR senses mechanical position change of stem being on the valve or similar device and converses to current signal of DC 4~20mA outputs. It is flame proof type and Limit switch is attached internally.
Features
- Mechanical Limit Switch is built in the Position transmitter, so it is not necessary bracket for Limit switch and wiring is simple.
- Wiring is convenient due to 2 wire type.
- It has high resolution and reliability.
- The controlling range of Zero and Span is large, so adjustment is convenient.
- It is possible to change RA/DA with changing position of dip-switch without replacement of any parts.
Specifications
|
PTM
|
Item.Type
|
PTM-6VR
|
|
Connection Type
|
2Wrie
|
|
|
Input Signal
|
0~90°
|
|
|
Output Signal
|
4~20mA DC
|
|
|
Load Resistance
|
0~600 Ohm
|
|
|
Supply Voltage
|
15~30V DC
|
|
|
Noise Range
|
50mV pp
|
|
|
Conduit
|
PF 1/2 (G 1/2)
|
|
|
Ambient Temp
|
-20°C~70°C (-4~158°F)
|
|
|
Linearity
|
±1% F.S.
|
|
|
Hysteresis
|
±0.2 F.S.
|
|
|
Sensitivity
|
±0.2% F.S.
|
|
|
L/S
|
Rating
|
AC 0.6A 125V~16A 250V
|
|
Swich Type
|
2x SPDT
|
|
|
Temperature Rating
|
-40~85°C
|
|
|
Explosion Proof
|
ExdIICT6
|
|
|
Protection
|
IP67
|
|
|
Material
|
Aluminum
|
|
|
Weight
|
1.3kg(2.9lb)
|
|
