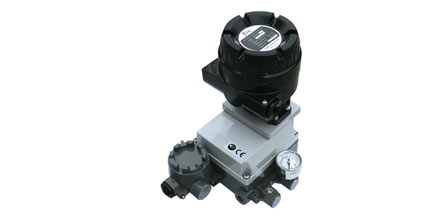

YT-1000R +L/S (ext) Electro-Pneumatic Positioner
The Electro-Pneumatic positioner YT-1000R is used for operation of pneumatic rotary valve actuators by means of electrical controller or control systems with an analog output signal of DC 4 to 20mA or split ranges and Position transmitter & Limit switch is attached externally.
Features
- Stability of system is improved by built in Position transmitter and Limit switch.
- It is not necessary extra bracket of Position transmitter or Limit switch.
- The change of RA/DA Action is convenient, it is able to apply to single or double acting and actuator.
- It is possible to prevent the hunting with orifice to the small size actuator.
Specifications
|
PTM
|
Input type
|
2Wire
|
|
Input Signal
|
90°
|
|
|
Output Signal
|
4-20mA DC
|
|
|
Load Resistance
|
0~600 Ohm
|
|
|
Noise Range
|
50mVp.p
|
|
|
Conduit
|
PF1/2(G1/2)
|
|
|
Protection
|
IP67
|
|
|
Linearity
|
±1%
|
|
|
Sensitivity
|
±0.2%
|
|
|
Ambient Temp
|
-8°C ~ 70°C (17.6~158°F)
|
|
|
Hysteresis
|
0.2%
|
|
|
Supply Voltage
|
15~30V DC
|
|
|
Material
|
Aluminium
|
|
|
Explosion Proof
|
Exd II CT6
|
|
|
Limit Switch
|
Rating
|
AC 0.6A 125V~16A
|
|
Switch Type
|
2 x SPDT
|
|
|
Temperature Rating
|
-40°C ~ 85°C
|
|
|
POSITIONER
|
Same With YT-1000R (Standard Type)
|
|
