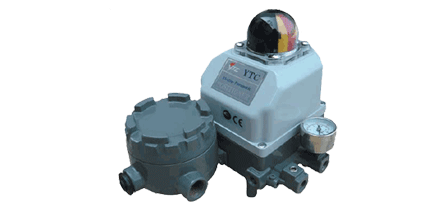

YT-1000R +PTM +L/S (int) Electro-Pneumatic Positioner
The Electro-Pneumatic Positioner YT-1000R is used for operation of pneumatic rotary valve actuators by means of electrical controller or control systems with an analog output signal of DC 4 to 20mA or split ranges. And positon transmitter which is built internally outputs present opening rate with changing this to current signal of DC 4~20mA.
- Stablility of the system is improved by output current signal of positioner.
- It isn’t necessary any other extra bracket for position transmitter.
- The change of RA/DA Action is convenient, it is able to apply to single or double acting actuator.
- It is possible to prevent the hunting with orifice to the small size actuator.
- It is economical due to less consumption.
Specifications
|
PTM
|
Input type
|
2Wire
|
|
Input Signal
|
90°
|
|
|
Output Signal
|
4-20mA DC
|
|
|
Load Resistance
|
0~600 Ohm
|
|
|
Noise Range
|
50mVp.p
|
|
|
Adjustable Range
|
Zero : ±10% Span : 60~110%
|
|
|
Protection
|
IP67
|
|
|
Linearity
|
±1%
|
|
|
Sensitivity
|
±0.2%
|
|
|
Hysteresis
|
0.2%
|
|
|
Supply Voltage
|
15~30V DC
|
|
|
Limit Switch
|
Rating
|
AC 0.6A 125V~16A
|
|
Switch Type
|
2 x SPDT
|
|
|
Temperature Rating
|
-40°C ~ 85°C
|
|
|
POSITIONER
|
Same With YT-1000R (Standard Type)
|
|
