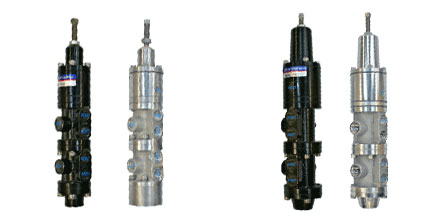

YT-500, 510 Snap acting relay
Snap acting relay YT-500 and YT-510 makes to change the direction of supplying air flow rate from one output port to the other port when the sensing signal pressure is lower than setting pressure.
Features
- YT-500 and YT-510 makes to switch promptly sensing minute differential pressure correctly.
- It is able to send pressure or flow rate from device to the other device.
- It is able to lock the actuator in its last position.
- Actuator and stem is able to extend and connect.
- For special type, it is able to manufacture the stainless steel product for corrosion atmosphere or seawater.
Specifications
|
Item.Type
|
YT-500
|
YT-510
|
||
|
Signal
|
Single
|
Double
|
Single
|
Double
|
|
1.4~7
|
1.4~7
|
|||
|
Max.Supply Pressure
|
10kgf/cm2(142psi)
|
10kgf/cm2(142psi)
|
||
|
Signal Connection
|
PT(NPT) 1/8
|
PT(NPT) 1/8
|
||
|
In/Out Connection
|
PT(NPT) 1/4
|
PT(NPT) 3/8
|
||
|
Ambient Temp
|
-20~65°C (-4~150°F)
|
-20~65°C (-4~150°F)
|
||
|
Weight
|
0.8kg(1.7lb)
|
1.2kg(2.6lb)
|
2.1kg(4.6lb)
|
3.3kg(7.3lb)
|
